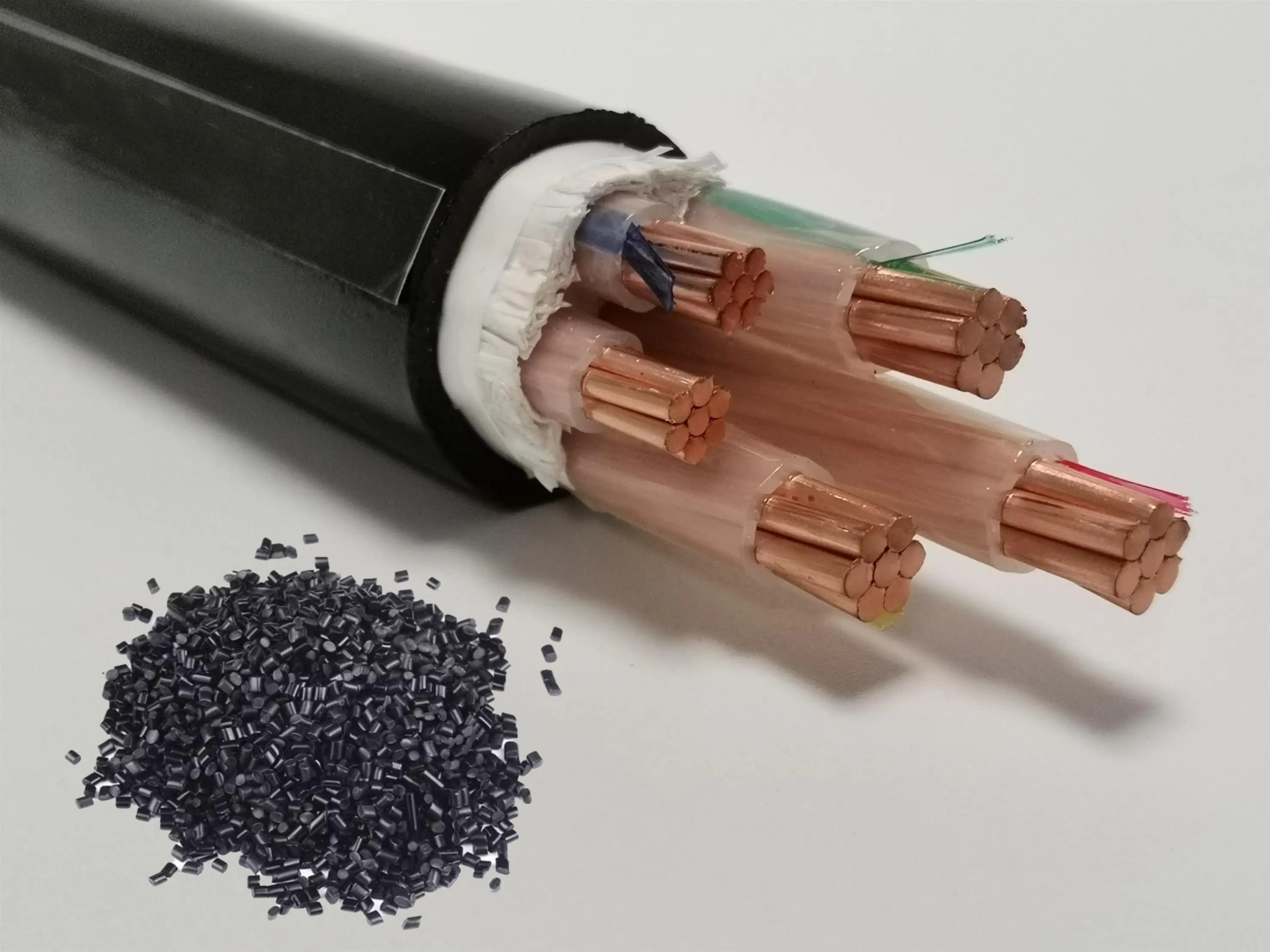

B2 grade low smoke halogen-free flame retardant polyolefin insulation material

low smoke zero halogen B2 grade Cable Insulation Material

B2 grade insulation material is made of high purity resin as base material, with halogen-free flame retardant, antioxidant, etc. mixed and extruded into granules. It has excellent performance such as halogen-free, heat-resistant, and weather-resistant, has no precipitation pollution, meets the relevant requirements of Rohs, and is easy to extrude and process.

Application

Related cables of GB/T 31247 standard

B2-grade low-smoke halogen-free flame-retardant polyolefin insulation material is a special type of cable material. It produces less smoke when burning and does not contain halogen, so it does not produce toxic gases. It is particularly suitable for occasions with high safety and environmental protection requirements, such as high-rise buildings, subways, power plants, nuclear power plants, rail transit and other important departments and public places.

The preparation of this material usually includes the following steps

Raw material mixing: polyolefin blended resin, inorganic flame retardants such as aluminum hydroxide and magnesium hydroxide, and antioxidants are mixed evenly in a certain proportion.

Extrusion processing: The mixed raw materials are melted and extruded through an extruder to form a cable insulation layer.

Irradiation cross-linking: The polyolefin material is cross-linked by electron beam irradiation or chemical cross-linking agents to improve its mechanical properties and heat resistance.

The characteristics of B2-grade low-smoke halogen-free flame-retardant polyolefin insulation material include

Low smoke and halogen-free: less smoke is produced during combustion, no halogen, and the generation of toxic gases is reduced.

Flame retardant properties: The flame retardant properties of the material are improved by adding inorganic flame retardants such as aluminum hydroxide and magnesium hydroxide.

Mechanical properties: The cross-linked polyolefin material has high tensile strength and elongation at break, which improves the mechanical properties of the cable.

Heat resistance: The cross-linked insulation material can withstand high operating temperatures and is suitable for a variety of environmental conditions.

In practical applications, B2-grade low-smoke halogen-free flame-retardant polyolefin insulation materials need to meet relevant national standards, such as GB/T 18380, to ensure that they can provide adequate safety performance in the event of a fire. With the increasing requirements for environmental protection and safety, the application prospects of this material are expected to increase further.

Testing items	VALUE	Typicalvalue	UNIT	Method
Density	≤1.65	1.62	g/cm3	GB/T1033
Low-temperature brittle temperature	≤15/30	0/30	个	GB/T5470
Environmental stress cracking resistance	≥96	108	F0/h	GB/T2951
Thermal stress cracking resistance	Uncracked	Uncracked	一	GB/T32129
Tensile strength before aging	≥10	11.8	MPa	GB/T2951
Elongation at break before aging	≥150	180	%	GB/T2951
Performance after aging110℃×168h
Change rate of tensile strength	≤±30	10	%	GB/T2951
Change rate of elongation at break	≤±30	-9	%	GB/T2951
Volume resistivity at 20℃	≥1.0×1012	5.6×1012	Q.m	GB/T1410
Dielectric strength	≥18	20	MV/m	DIN EN 6024
Oxygen index	≥35	37	%	GB/T2406
Smoke density flame method	≤100	80	/	GB/T8323
Smoke density flameless method	≤350	200	/	GB/T8323
Hydrogen halide gas content	≤5	0	m/g	GB/T17650
Combustion gas pH value	≥4.3	5.9	/	GB/T17650
Combustion gas conductivity	≤10	6	μs/mm	GB/T17650
Water absorption test70℃×24h
Maximum weight gain	≤10	5	mg/cm²	GB/T32129
Peak heat release rate	≤180	100	kW/m2	lS0/5660
Total heat release	≤180	110	MJ/m2	IS0/5660
Average heat release rate	≤100	80	kW/m2	1S0/5660
