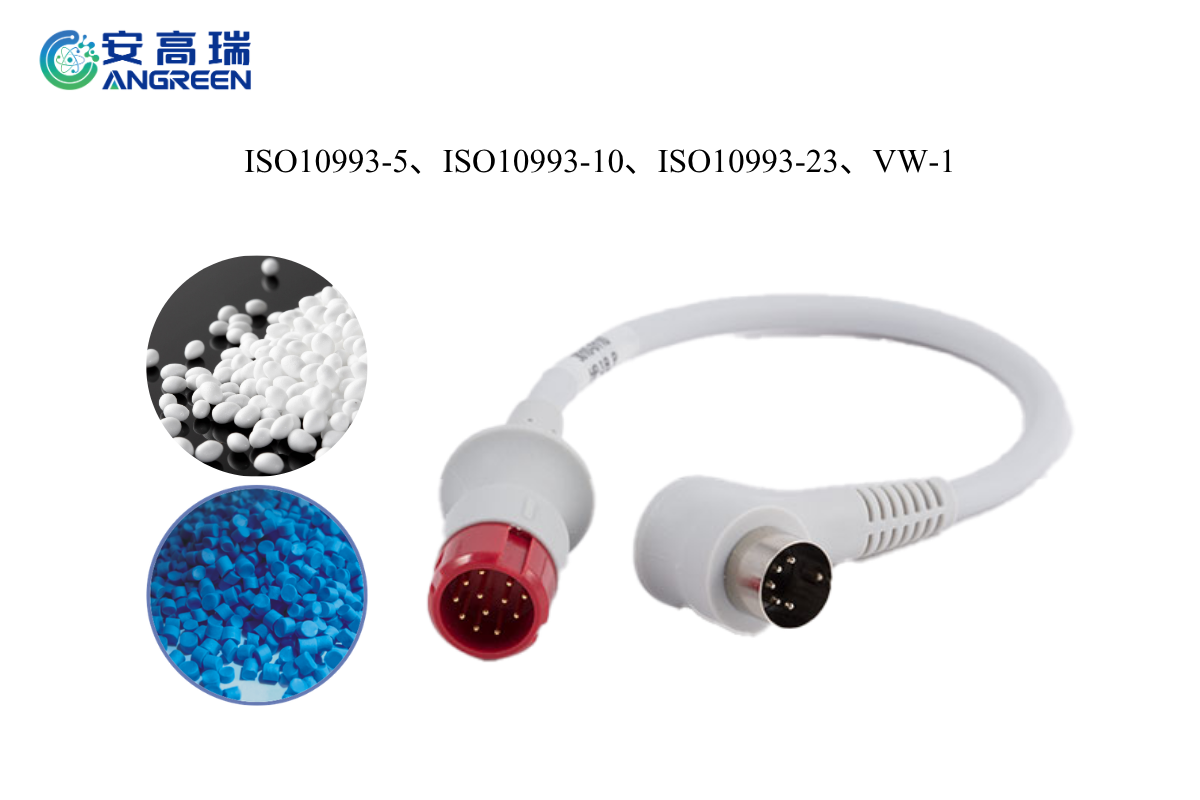

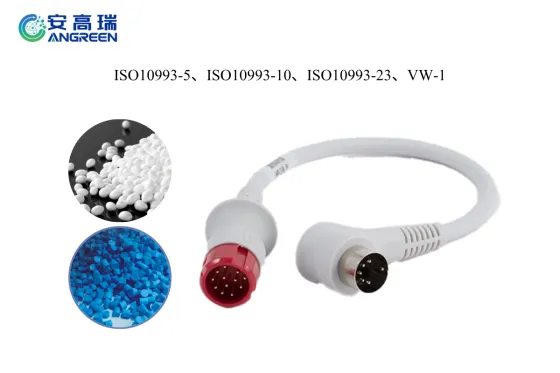

Medical Grade Developing Grade TPU Material

Medical Equipment & Microbial-resistance Cable Jacket TPU

Main Features:

Anti-Staphylococcus aureus, Escherichia coli, Candida albicans; resistant to mold, microorganisms, chemicals, alcohol, acid and alkali, hydrolysis, and non-hemolytic;

Can be sterilized using gamma rays and ETO; low drug adsorption and easy bonding; highly transparent, high strength, and flexible, all stronger than PVC; with ISO-10993 biocompatibility test report, ISO 9001 and other standards. Delicate matte appearance, with good flame retardant effect (VW-1); halogen-free, environmentally friendly, non-toxic, in compliance with RoHS, REACH, ISO 9001 Compatibility Test And Other Standards;

Application：medical cables, medical-grade catheters

Developable：Barium Sulfate, Tungsten

Medical TPU（Thermoplastic Polyurethane）developing materials are a type of high-tech materials used in medical imaging technology. They have excellent biocompatibility, mechanical properties and environmental friendliness, so they have been widely used in the medical field.

The Characteristics of Medical TPU Developing Materials Include

Biocompatibility: TPU materials have good compatibility with human tissues, are non-toxic and non-allergenic, and are suitable for medical devices inside the human body.

Mechanical properties: With high strength, high toughness and wear resistance, they can meet the durability requirements of medical equipment in long-term use.

Processing performance: TPU materials are easy to process and can be made into medical supplies such as films and catheters through different processes.

Development performance: In medical imaging equipment such as X-rays and CT, TPU materials can provide clear development effects, which helps doctors make accurate diagnoses.

In The Medical Field, TPU Developing Materials Are Widely Used, Including But Not limited to:

Artificial heart assist devices: Due to its excellent blood compatibility, TPU is used to manufacture artificial heart assist devices.

Medical catheters: The mechanical stability and biocompatibility of TPU make it an ideal material for preparing medical catheters.

Medical film: TPU film can be used for wound dressings, surgical towels and wearable patches, etc. It is soft and has strong moisture permeability.

Medical gloves: TPU materials can also be used to make medical gloves, providing good protection and comfort.

Product Parameters

PROPERTIES	VALUE	Typical value	UNIT	Method
PHYSICAL PROPERTIES
Hardness	85±3	85	A	GB/T 2411
Specific Gravity	1.1±0.05	1.11	g/cm3	GB/T 1033
Tensile strength	≥25	27	MPa	GB/T 1040
Elongation at break	≥400	600	%	GB/T 1040
Tear strength	≥30	42	N/mm	CQC1103-2015 Appendix B
113℃* 168H TS Retention	≥70	86	%	GB/T2951.12
135℃* 168H EB Retention	≥70	95	%	GB/T2951.12
80℃* 168H TS Retention	≥70	80	%	GB/T2951.12
80℃* 168H EB Retention	≥70	89	%	GB/T2951.12
UL Temperature rating	80	80	℃	UL
Brittleness Temperature	≤-40	≤-60	℃	GB/T5470
