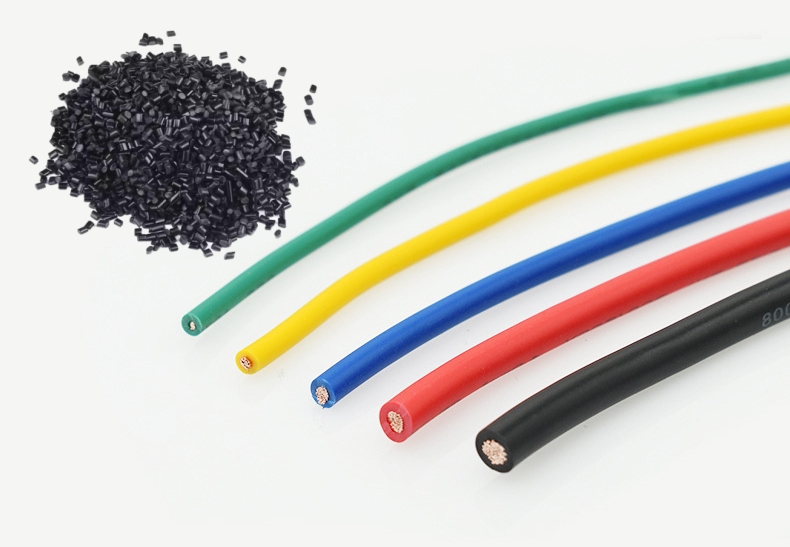

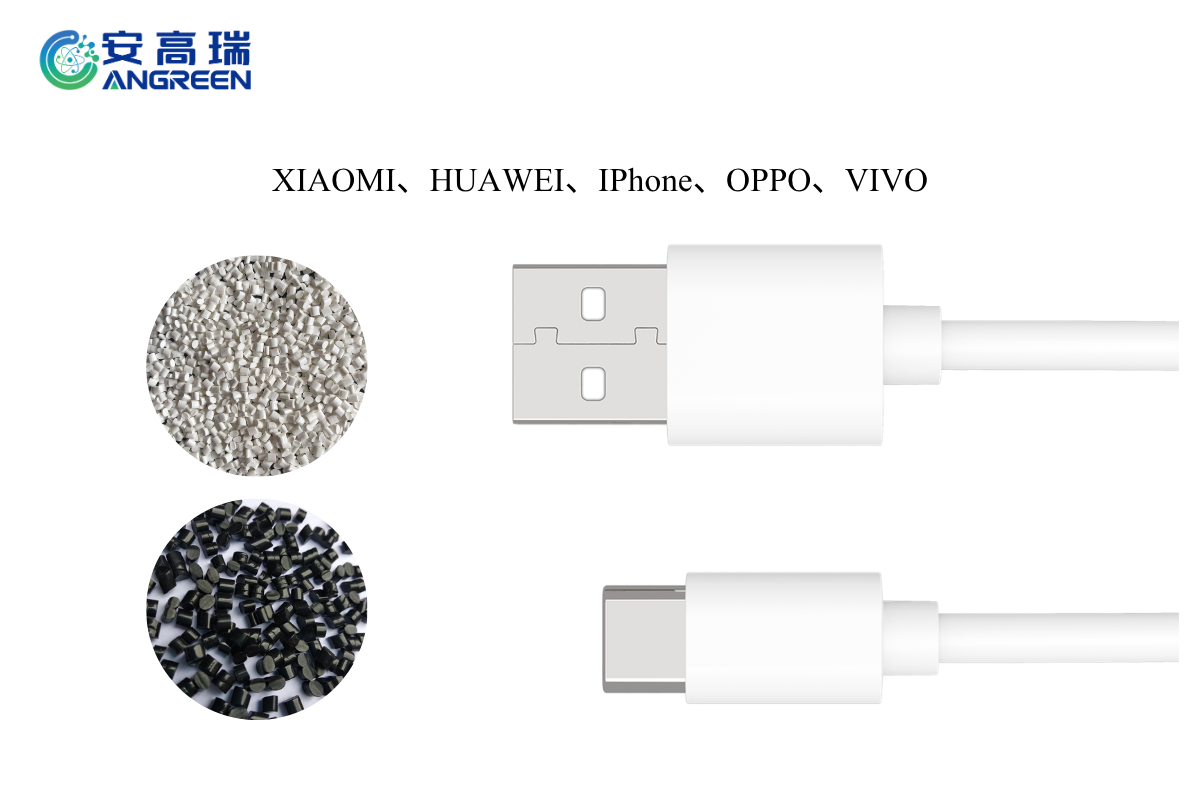

TPE flame retardant electronic wire material

Flame Retardant TPE Themoplastic Elastomer Electronic Cable Compounds

This product is made of polymer resin as the base material, with halogen-free flame retardant, cross-linking agent, antioxidant and other additives added through mixed plasticization and granulation. It does not contain harmful substances such as heavy metals, and has excellent mechanical properties, electrical properties and wide processing temperature margin.

Application：

Electronic wire

TPE (Thermoplastic Elastomer) materials are favored in the wire and cable industry for their unique properties, especially in applications where the materials need to have flame retardant properties. TPE flame retardant electronic wiring materials are usually required to have the following characteristics:

1. Halogen-free flame retardant: Most TPE materials in the wire and cable industry are required to be halogen-free to reduce toxicity and environmental impact. The demand for halogen-free flame retardant TPE materials has increased with the improvement of environmental protection and safety performance requirements.

2. Excellent processing performance: TPE materials can be processed in a wide temperature range (180-220°C), without vulcanization or with a very short vulcanization time, which can effectively save energy.

3. Heat resistance: TPE materials have good heat resistance and can meet the application requirements of wires and cables in high temperature environments.

4. Electrical insulation performance: TPE materials have excellent electrical insulation properties and are suitable for wiring of electronic equipment.

5. Softness and surface smoothness: The softness and surface smoothness of TPE materials give them advantages in touch and visual appearance.

6. Environmental characteristics: TPE materials are recyclable and meet environmental protection requirements such as ROHS. They are ideal substitutes for PVC.

7. Chemical resistance: TPE materials have good tolerance to a variety of chemicals and are suitable for cables in special chemical environments.

In the wire and cable industry, the application trend of TPE materials shows that the demand for halogen-free flame-retardant TPE will increase further, especially in the field of high-end electronic consumer products, such as data cables, headphone cables, electronic cables, power cables, signal cables, etc. With the advancement of technology and the increasing market demand for environmentally friendly materials, the market prospects of TPE flame-retardant electronic cable materials are promising and are expected to play a more important role in the wire and cable industry.

Testing Items	VALUE	Typicalvalue	UNIT	Method
Density	1±0.03	1.02	g/cm3	GB/T 1033
Hardness	95±3	95	15A	GB/T 2411
Tensile strength	≥8	13	MPa	GB/T 1040.2
Elongation at break	≥200	450	％	GB/T 1040.2
Heat deterioration 136±2℃，168h
Change rate of tensile strength	≤±30	15	%	GB/T 2951.12
Change rate of elongation at break	≤±30	-20	%	GB/T 2951.12
Impact brittle temperature	≤15/30	0/30	PCS	GB/T 5470
Volume resistivity 20ºC	≥1.0×1014	3.5×1015	Ω·m	GB/T 1410
Flame retardant	/	FT2	/	UL1581

Blog

Angreen | Manufacturer of modified plastic cable granular materials

Jul. 02, 2024

Founded in 2011, Angreen New Material Technology Co., Ltd. is a Chinese high-tech enterprise specializing in the research, development, production and sales of environmentally friendly, high-performance wire and cable materials.

Angreen helps the 2024 Asia Cable Exhibition to be held successfully

Jul. 09, 2024

From June 26 to June 28, 2024, the 2024 Asian Wire and Cable Industry Exhibition was officially launched at the China Import and Export Fair Complex in Guangzhou, and the 2024 Asian Wire and Cable Industry Exhibition Summit Forum series of activities were held.

TPU/TPE charging pile cable sheath and insulation material

Jul. 16, 2024

In the tide of global energy transformation, the new energy vehicle industry has ushered in unprecedented development opportunities. In 2023, the Chinese automobile market will set a new record with a production of 30.161 million vehicles and a sales volume of 30.094 million vehicles.

FAQS

What are your main products?

Angreen Main Products

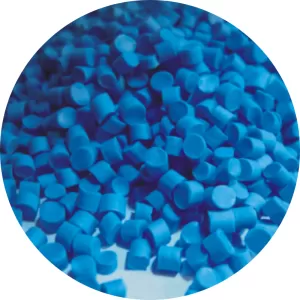

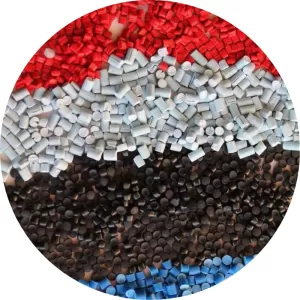

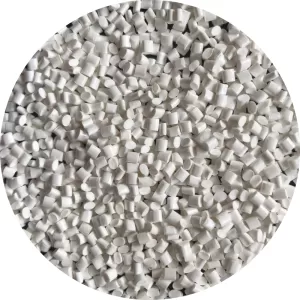

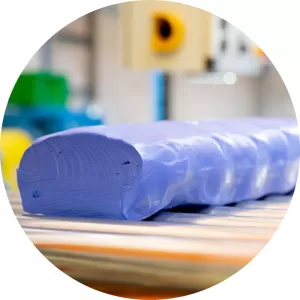

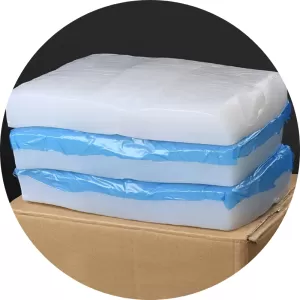

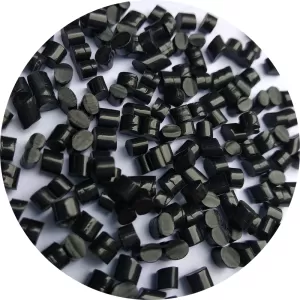

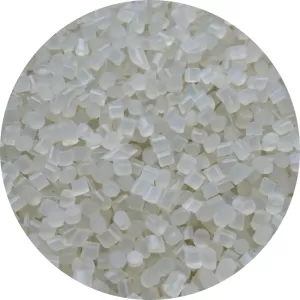

Angreen's main products include cross-linked polyolefins (XLPO), cross-linked polyethylene (XLPE) of various types of cross-linked materials, low smoke zero halogen (LSZH) series materials, thermoplastic polyurethane (TPU), thermoplastic elastomers (TPEs), silicone, EPDM, PVC and other materials.
