TPU Material For Jacket

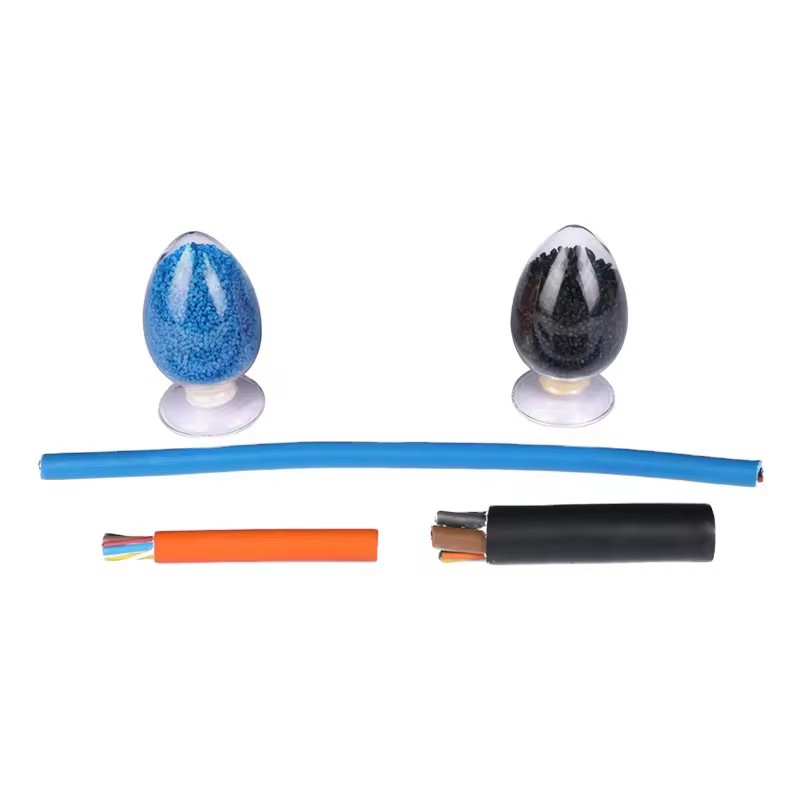

Thermoplastic Polyurethane TPU Cable Jacket Material /Insulation Material

TPU Cable Jacket Material is made of polyether polyurethane resin as the base material, and is mixed with halogen-free environmentally friendly flame retardants, additives, etc. and extruded into granules. It combines high performance, high and low temperature resistance, flame retardancy, wear resistance, oil resistance and other excellent properties, and has no precipitation.

Halogen-free flame retardant TPU is a halogen-free environmentally friendly material with phosphorus and nitrogen as flame retardant elements. The mechanical properties meet the requirements for the use of TPU wires in the UL1581 standard, and the flame retardancy reaches UL1581VW-1, UL94V-0, V-1, V-2 and CSAFT-2, FT-1 levels.

This product is soft, light, elastic, and has a good feel. It has a smooth surface and wear-resistant surface. It has frosted, matte, and semi-matte surfaces. There are silicone-containing and silicone-free products. The product meets the environmental requirements of ROHS2.0, Reach, Halogen-free, PAHS, 23P-Free, PFOS&PFOA, etc.

Application Areas

Mainly used in the manufacture of wires and cables in the fields of wire sheaths, wire plugs, and charging pile cables.

The Characteristics of TPU

Wide hardness range、High mechanical strength、Cold resistance、Good processing performance、Oil resistance, water resistance, and mildew resistance、Good recyclability、Weather resistance。

The Application of TPU Is Very Wide, Including But Not limited To:

Shoe materials: sports shoe logo, air cushion, hiking shoes, etc.

Clothing: waterproof and breathable fabrics, medical clothing, etc.

Medical: surgical gowns, caps, shoes, hospital mattresses, etc.

Defense products: aircraft fuel tanks, weapons sealing coatings, etc.

Sports goods: football surface, inflatable bed, ski gloves, etc.

Industrial goods: outer sheath materials for wires and cables, hoses, etc.

Other uses: mobile phone keys, plastic inflatable toys, furniture fabrics, etc.

Product Parameters

NO.	Project	VALUE	Typical value	UNIT	Method
Physical Property
1	Hardness	85±3	85	A	GB/T2411
2	Density	1.17 0.05	1.17	g/cm3	GB/T1033
3	Brittleness Temperature	≤-40	<-40	C	GB/T5470
4	Tensile strength	≥20	24	MPa	GB/T1040
5	Elongation at break	≥400	503	%	GB/T1040
6	Tear strength	≥40	45	N/mm	CQC1103-20
Aging performance 110°Cx168h
9	TS Retention	≥70	76	%	GB/T2951.12
9	EB Retention	≥70	90	%	GB/T2951.12
10	ULUL Temperature rating	90	90	C	UL
Flame Retardant and Combustion Performance
11	Flame class	UL94-V0	UL94-V0	class	UL94
12	LOI	≥25	27	%	GB/T2406
（IRM902,100°C*168H）
13	TS Retention	≥70	81	%	GB/T2951.1 2
13	EB Retention	≥70	86	%	GB/T2951.1 2
（80'C*168H）
14	TS Retention	≥70	79	%	GB/T2951.1 2
14	EB Retention	≥70	83	%	GB/T2951.1 2
Electrical performance
15	Volume Resistivity at 20°C	≥1.0x1014	45x1014	Ω.cm	IEC 60093

Thermoplastic Polyurethane Suppliers and Manufacturers

Thermoplastic polyurethane has become the material of choice for industries that require high-performance elastomers. Angreen TPU materials have excellent flexibility, wear resistance and durability, making them ideal for automotive, electronics, medical devices and footwear applications.

If you are looking for TPU, Welcome to contact Angreen.

Leading Thermoplastic Polyurethane Manufacturer

Angreen is a professional and leading TPU manufacturer, providing high-quality thermoplastic polyurethane tailored to industry or customer requirements.

Our production capabilities ensure that TPU materials have

·Excellent mechanical and thermal properties;

·Excellent wear resistance for wear-intensive applications;

·Resistant to oils, greases and chemicals, which is critical for industrial uses;

·Flexible at low temperatures, suitable for extreme weather conditions;

·Whether you are sourcing TPU materials for injection molding, 3D printing or making cable jackets.

Angreen offers a variety of TPU grades, including soft, medium and high hardness varieties.

Customizable formulations are available for specific applications, such as medical catheters or industrial belts.

Flexible packaging and delivery options are suitable for small businesses and large manufacturers.

Choosing a reliable TPU supplier ensures that your project is successfully completed and the product performance leads the industry standard.
