Mildew-Resistant TPU Sheath Material

Anti-mildew TPU Cable Compounds

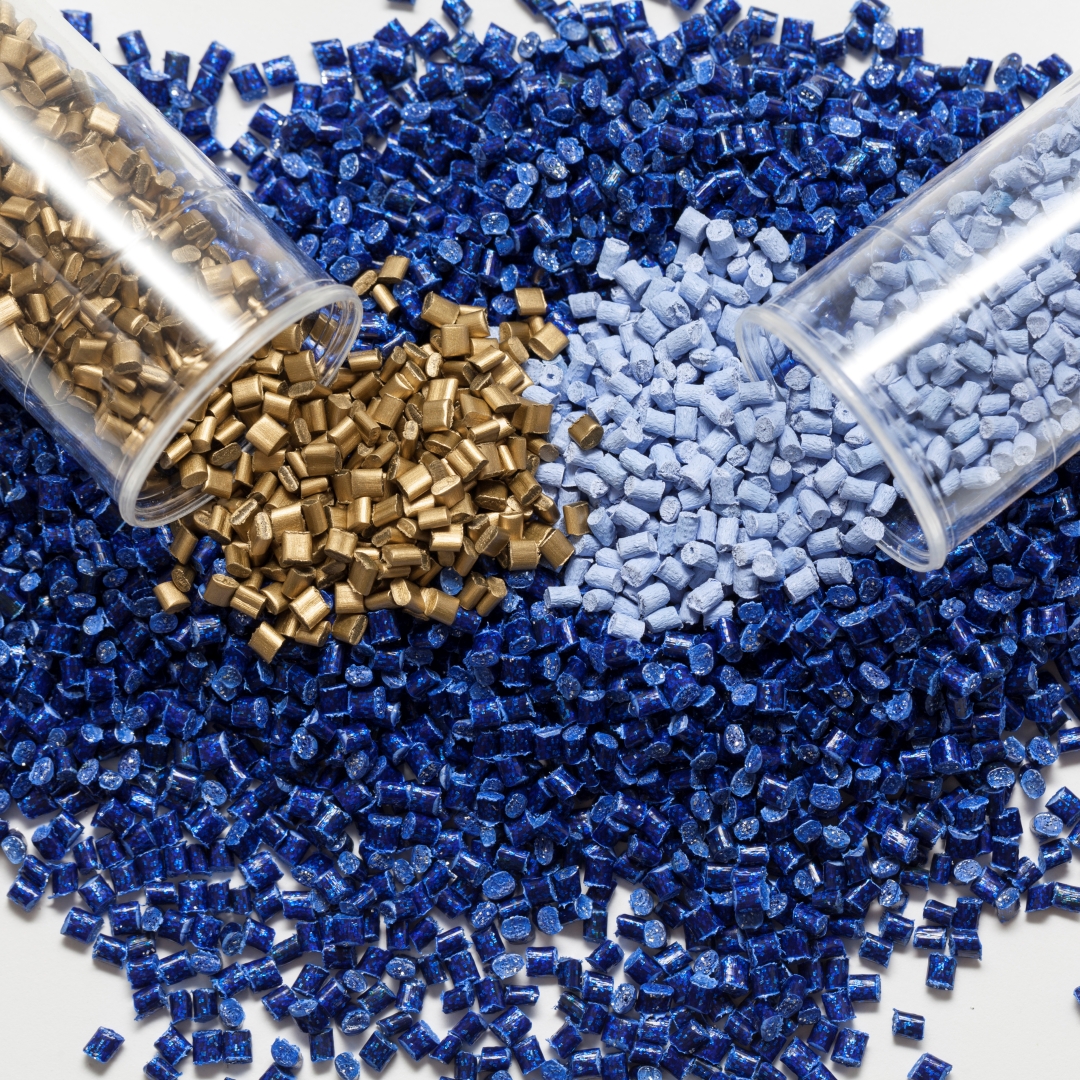

This product is made of polyether polyurethane elastomer as base material, adding high-efficiency flame retardant and other processing aids, and is made by mixing, plasticizing and granulating. It has excellent properties such as halogen-free, high flame retardant grade, high resilience, hydrolysis resistance, heat resistance, weather resistance, oil resistance, etc., and can add matte, frosted and other effects according to customer needs; there is no precipitation pollution, and it meets the relevant requirements of Rohs.

Application：

Field cables

Features：

Mildew resistant (GJB-150.10A)

TPU（Thermoplastic Polyurethane）mildew-resistant Jacketing material is a high-performance material that has excellent mildew-resistant properties, making it particularly useful in the field of cable jacketing materials. The mildew-resistant properties of this material are essential for cables that need to be used in humid or mildew-prone environments, such as food processing facilities, hospitals，laboratories, ships and underground facilities.

The characteristics of TPU mildew-resistant Jacketing Materials Generally Include

High mechanical strength: Excellent tensile strength and tear resistance, able to withstand mechanical stress.

High and low temperature resistance: Able to maintain performance over a wide temperature range, especially low temperature resistance.

Chemical resistance: Good resistance to chemicals such as oil, acid, and alkali.

Abrasion and oil resistance: Suitable for use in harsh environments, including oily and chemically corrosive environments.

Halogen-free flame retardant: Has flame retardant properties, does not contain halogens, and reduces toxic gas emissions during combustion.

Anti-microbial and mildew resistance: Able to resist microbial growth, suitable for use in environments susceptible to mildew.

Test Items	VALUE	Typical Value	UNIT	Method
Physical Properties
Density	1.20±0.05	1.2	g/cm3	GB/T 1033
Hardness	90±3	90	HA	GB/T 2411
Brittle temperature	≤-40	-40	℃	GB/T 5470
UL temperature grade	80	80	℃	UL
Mechanical Properties
Tensile strength before aging	≥10	17	MPa	GB/T 1040
Elongation at break before aging	≥400	550	%	GB/T 1040
110℃×168hPerformance After Aging
Tensile strength retention rate	≥70	76	%	GB/T 2951.12
Elongation at break retention rate	≥70	90	%	GB/T 2951.12
Tear resistance	≥40	40	N/mm	CQC1103-2015 Appendix B
Oil resistance \| IRM902,100℃*168H
Tensile strength retention rate	≥70	82	%	/
Elongation retention rate	≥70	85	%	/
Oxygen index	≥25	25	%	GB/T 2406
